Experience Hassle-free Bending

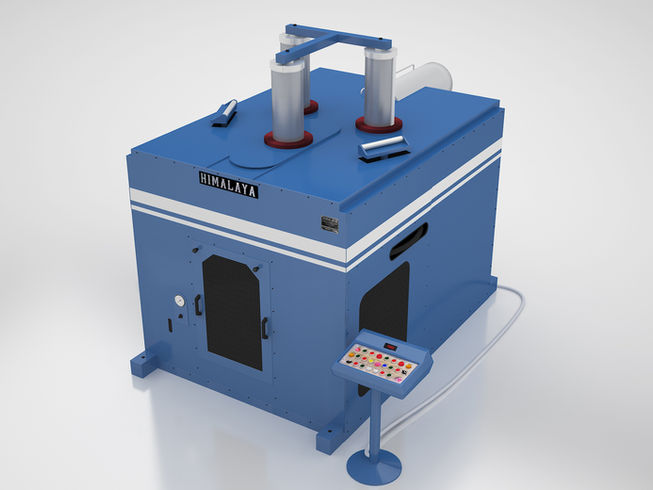

Himalaya, our Section Bending Machine is engineered to offer a variety of functions. It can cold bend and coil pipes, tubes and most other sections like 'l' beams, 'H' beams, unequal angles, channels, half pipes, flats, solid bars etc. In addition, the machine can help you make circular rings of any diameter from any of these sections with perfection.
Product Range
Model
SV 30
SV 50
SV 100
SV 150
SV 200
SV 300
SV 500
Pipe Sch. 40
2"
3"
4"
5"
6"
7"
8"
Angle
80x80x12
110x110x12
130x130x15
150x150x18
200x200x15
250x250x12
200x200x25
250x250x25
Double Channel on Web
ISMC
-
ISMC
75
ISMC
100
ISMC
125
ISMC
150
ISMC
175
ISMC
250
Channel on Flange
ISMC
150
ISMC
225
ISMC
300
ISMC
400
ISMC
ISMC
ISMC
Beam on Flange
175
ISMB
225
ISMB
350
ISMB
450
ISMB
500
ISMB
550
ISMB
600
ISMB
Note : Minimum Radius of curvature = 25 x depth of section in bending plane
* All capacities are as per 26 Kg/mm2 (Yield Strength of Plate Material)
Build Quality & Benefits
Sturdy Steel Structure
Our Section Bending Machine has been constructed in the form of a versatile pyramid type machine and is widely used in fabrication shops. It has two power driven rolls with fixed axes. The third roll is adjustable as to its distance from the fixed rolls. For easy operations, the third roll adjustment is power actuated and push button controlled.
Drive
The main drive to fixed axis rolls is through a high capacity gearbox.
Two rolls have fixed axes and they are power driven.
Third roll is power driven and it is adjustable as to its distance from the fixed rolls.
Frame
The main frame of our Section Bending Machine is an extremely robust and strong structure. It is properly designed with well-proportioned members and reinforcements.
PLC Control Panel (Optional)
For easy operation and supervision, the electric control panel is mounted on the side of the machine. The standard electrical circuit consists of forward-reverse control. Bending motor controls roll travel, limiting switch and indicator lamps. A separate floor mounted control panel is available as per specific requirement. For bending very small or thin walled work piece a power driven adjustable roll is available upon request.
Operation and Maintenance
Our Section Bending Machines are of sturdy construction so they are very easy to maintain. Operation of the machine is simple and fast to help you achieve accurate coiling and bending with minimum effort.
The HIMALAYA Advantage
-
What is done to compensate for deflection of rolls during pre-bending and rolling?All rolls are crowned (cambering) for compensating deflection.
-
What is the arrangement provided for balancing of top roll when swing arm is opened?Top roll is counter balanced automatically once the drop end is opened without any jacks or manual arrangement.
-
Is there any method to know the position of bottom rolls?DRO (Digital Readout) is housed on the operating console which gives the position of the bottom rolls with respect to the top roll.
-
What is the capacity for cone bending?Cones can be bent up to the edge-bending capacity of the machine. The bottom rolls can be inclined for the required cone angle.
-
What is the level of protection for electrical components?Some of the electrical bough outs are IP 55 like motors, switchgears etc. The electrical cabinet will be manufactured as per our standard practices and will meet IP 55 protection.
-
Is the main drive reversible?Forward and reverse to the main drive is provided. The bottom rolls can be moved up and down individually.
-
What is the type of oil required?Hydraulic oil – Enklo 68 Planetary Gear box – EP 90
-
Where are the main machine controls?Operating console houses push buttons for all the operations of the machine. The console is movable so that the operator can keep it at any desired location.
-
Can we bend hot plates on the machine to get higher thickness capacity?Although the standard machine is not meant for hot rolling, occasional hot rolling can be done (a few jobs per month) provided that suitable precautions are taken.
-
Some plates have high yield point (YP). The rolling capacities are rated for 26Kg/mm2. How to find the equivalent thickness?Divide the Actual YP by 26. Find square root of this number. Multiply this value by actual plate thickness to get effective thickness.
